Description

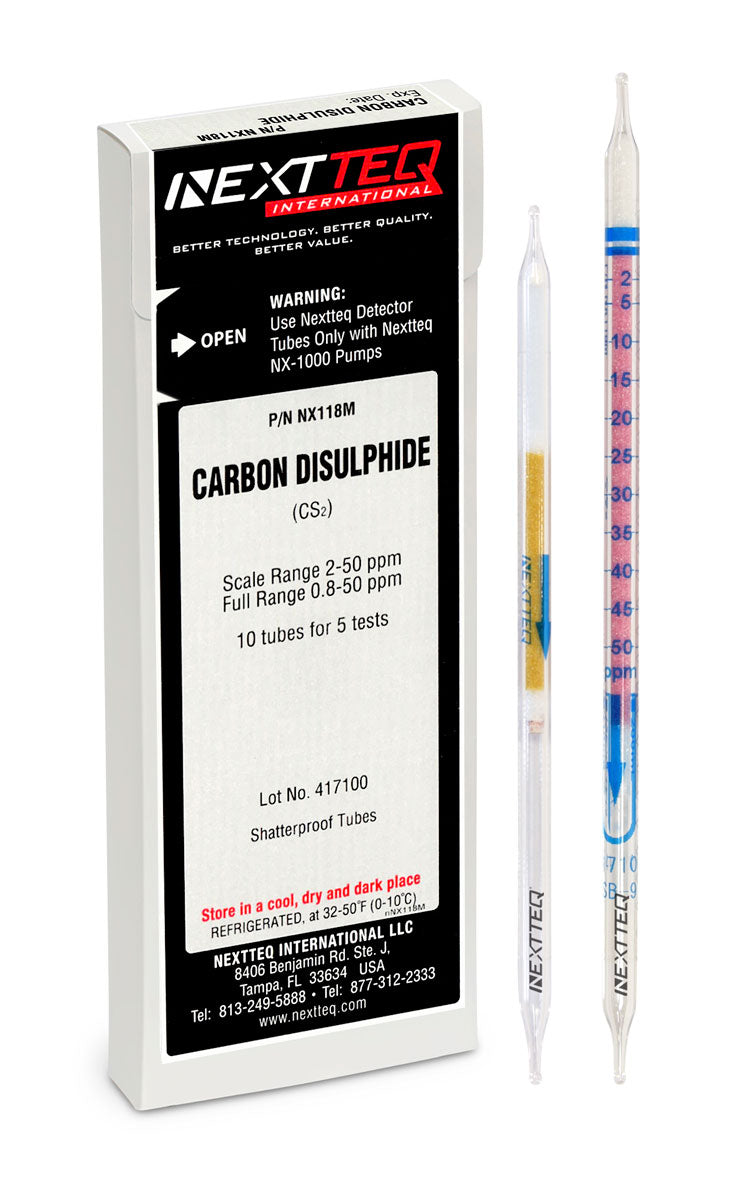

The Nextteq Carbon Disulfide Tube No. NX118M provides direct measurement of carbon disulfide over two ranges—2–50 ppm with two 100 mL pump strokes and 0.8–20 ppm with four strokes—using a clear pink-to-yellow color change, with temperature correction required and four-stroke readings converted using a simple 2/5× formula. With a 0.3 ppm detectable limit at 400 mL, a 3-year refrigerated shelf life (32–50°F), and a 32–104°F operating range, this tube is well suited for workplace and process monitoring relative to the very low 1 ppm TLV-TWA guideline, noting that sulfur dioxide and hydrogen sulfide can produce similar stains and higher readings, while chlorine produces a distinct pale-pink stain.
